Phinden

Phaseform's Adaptive Optics software to automate aberration measurement and correction directly from acquired images.

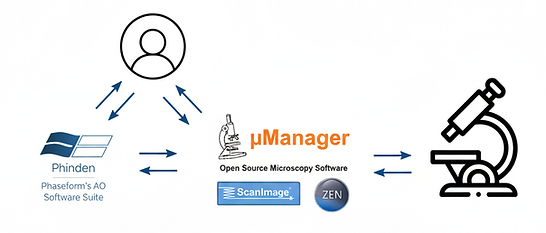

Phinden is compatible with several existing microscope control software packages. It handles the aberration measurement and adjustment to optimize image quality in real-time.

No Workflow Disruption: You keep using your microscope software - Phinden talks to it to get you Adaptive Optics!

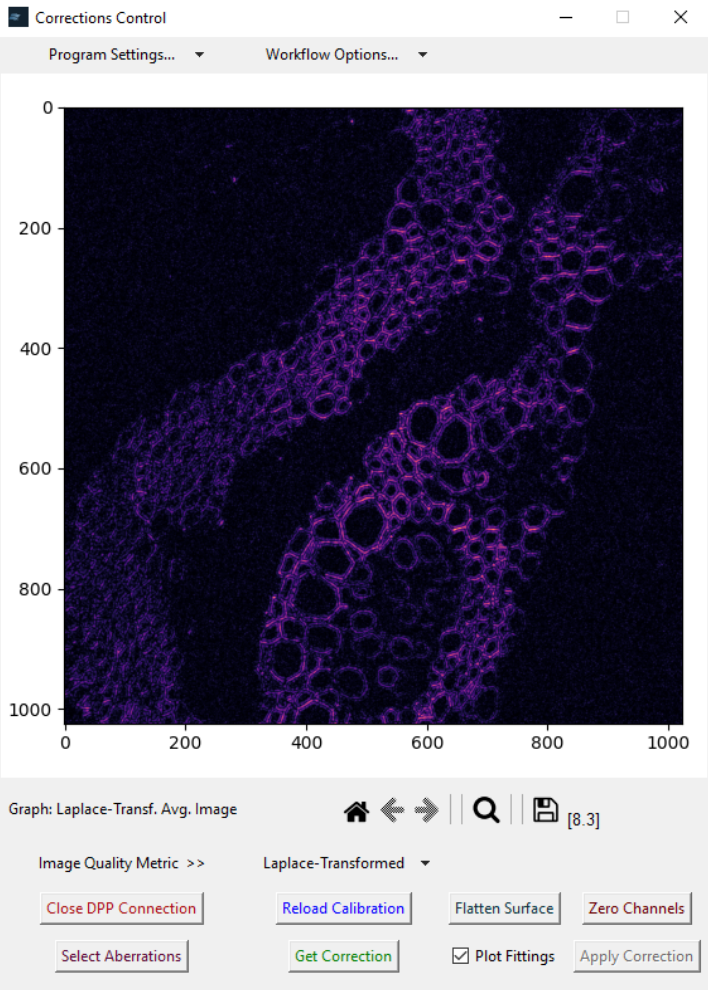

Sensorless correction software

Automating aberration measurement and correction for for image enhancement using captured frames. Requiring only a few clicks and no additional hardware/modification

Application Idea

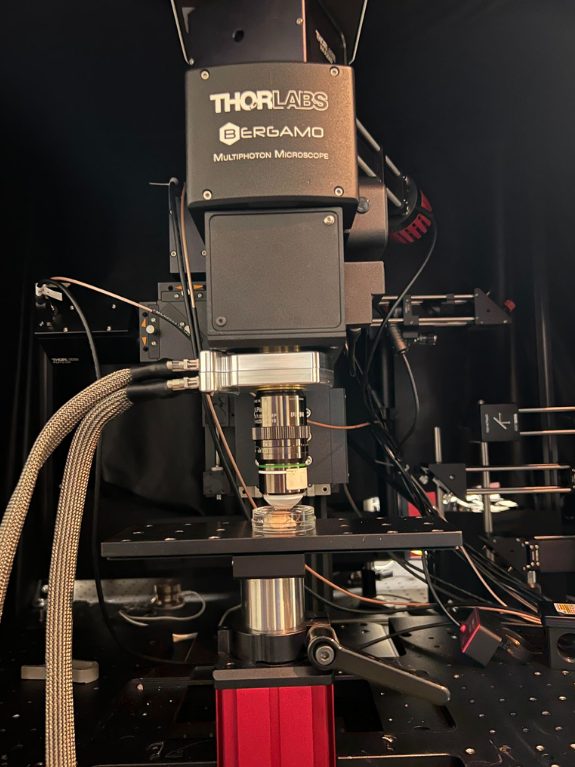

Working alongside the expert team at the German Center for Neurodegenerative Diseases (DZNE) Light Microscope Facility, we successfully integrated our AO technology into a commercial Thorlabs Bergamo multiphoton system.

For the 2P measurement, deep imaging was created using a custom-made cover glass with 2P excitation and a pollen grain sample. The images below show the results: on the left is the image of the sample without AO, and on the right is the corrected measurement. The corrected measurement on the right shows a significant improvement in contrast and brightness, and the finer structures are also more visible.

More applications

Small Title

I'm a paragraph. Click here to add your own text and edit me. It's easy.

System Requirements

Software	Requirement
ThorImage	Tested on : special version (2025 latest) provided by thorlabs
ZEN Blue	Version: 3.2 - 3.1, Macro environment included
ScanImage	Matlab: version R2020b and higher ScanImage: Premium license, 2019R0<=version<=2023.1.0, Windows: Supported o Windows 7 SP1, 8.1, 10, 11
µManager	Version:µmanager 2.0
Python	Minimum version 3.8, Maximum version 3.12

Your desired Control software not listed?

Get in touch
