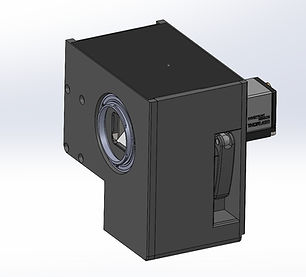

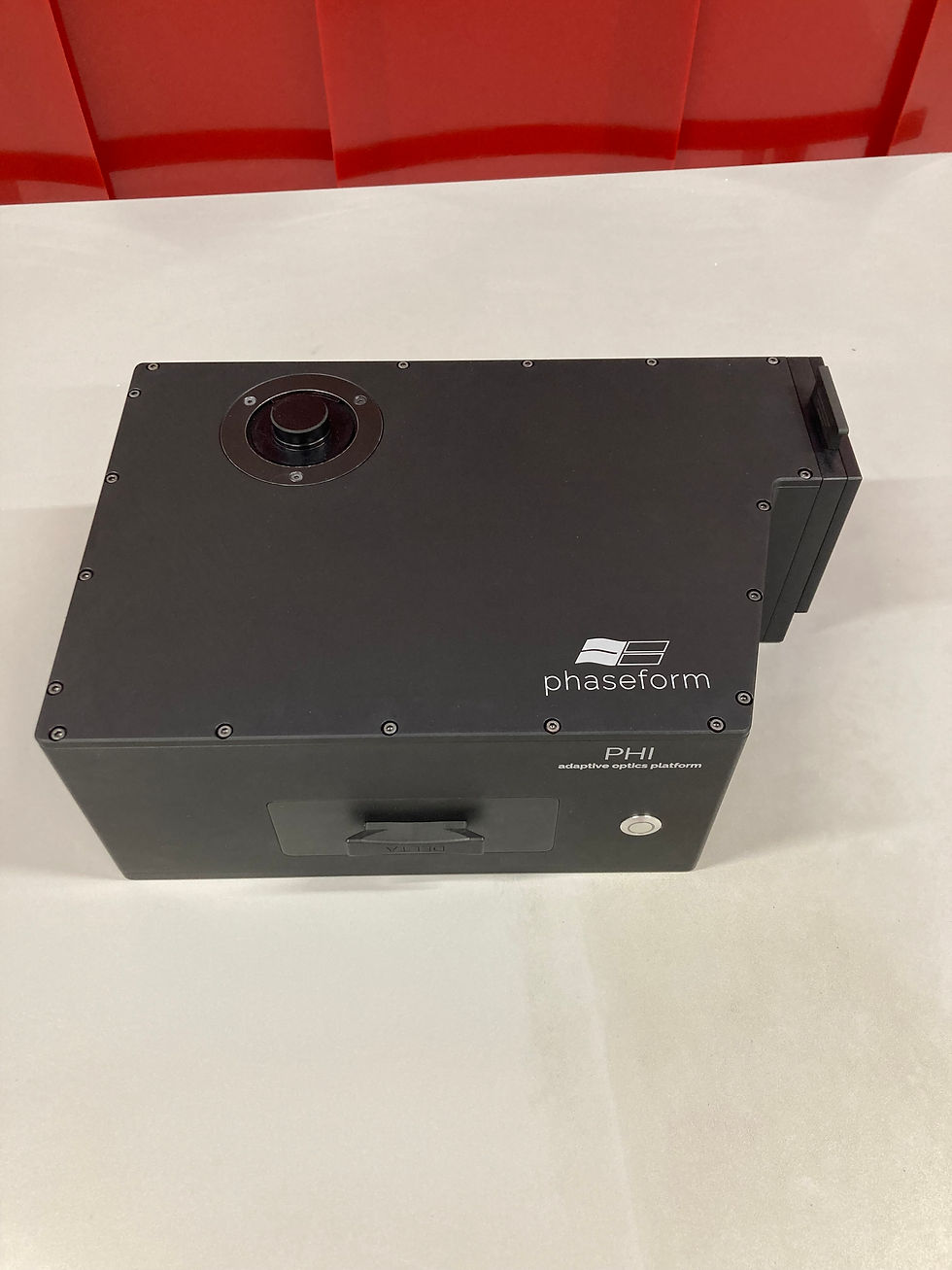

PHI
The PHI is the ultimate plug-and-play
adaptive optics platform for microscopy.
PHI is Phaseform's solution to enable a seamless integration of adaptive optics to any microscope via the microscope's camera port. It contains a Deformable Phase Plate (DPP) located at the microscope’s pupil plane for precise aberration corrections. It additionally features an integrated tunable lens for ultra-fast remote focusing.
Maximize Image Quality
Fluorocell images illustrating sequential correction of aberration
PSF Shaping
Experimental demonstration of PSF shaping by applying a astigmatism wavefront on 100 nm beads
Plug-and-play hardware & software
Spherical aberration correction
PSF shaping
Deep tissue imaging & 3D imaging
Courtesy of Dr. Roland Nitschke
Life Imaging Center, Uni Freiburg
Attaches to any standard C-mount camera port: Compatible with various C-mount microscopes: confocal & spinning-disk modules, etc.
Compatible with µManager, ScanImage. ZEN Python SDK available for custom workflows.
Remote Focusing:
Tuning range: up to 16 dpt
Tuning precision: 0.001 dpt
Response time: 3 ms
General properties:
Power/Connectivity: 18V wall power, USB to PC
WFS Addon
Wavefront Sensor Add-On
The Wavefront Sensor Add-On provides the option to integrate a wavefront sensor to the PHI for a more precise aberration determination in challenging samples.
Note: Wavefront sensor not included.
COMING IN H1'2026.
